Product Name:CJ-4000 solvent Printer with high solution

Product Details:
Model:
Select Payment and Shipping Terms:
Min. Order Quantity:
0
Place of Origin:
Min. Order:
FOB Price:
USD 0.00-0.00 /
Shipping Terms:
1
Shippment Port:
Payment Terms:
L/C ,T/T
Show Buyers your Ability to Supply:
Production Capacity:
0 Set/Sets per Week
Delivery Time:
Packaging:

Detailed Product Description:

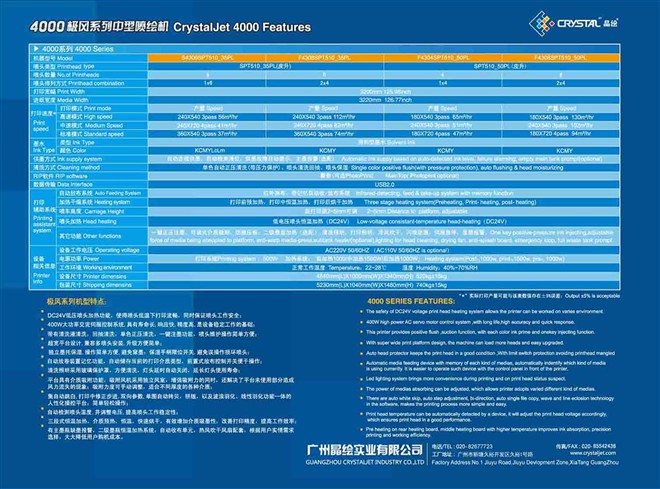

Crystaljet 4000 series performance:

  • The safety of DC24V voltage print head heating system allows the printer can be worked on varies environment.
  • 400W high power AC servo motor control sysytem ,with long life,high accuracy and quick response.
  • This printer provides positive flush ,suction function, with each color ink prime and onekey injecting funtionm.
  • With super wide print platform design, the machine can load more heads and easy upgraded.
  • Auto head protector keeps the print head in a good condition ,With limit switch protection avoiding printhead mangled
  • Automatic media feeding device with memory of each kind of medias, automatically indentify which kind of media is using currently. It is easier to operate such device with the control panel in front of the printer.
  • Led lighting system brings more convenience during printing and on print head status suspect.
  • The power of medias absorbing can be adjusted, which allows printer adopts varied different kind of medias.
  • There are auto white skip, auto step adjustment, bi-direction, auto single file copy, wave and line eclosion technology in the software, makes the printing process more sample and easy.
  • Print head temperature can be automatically detected by a device, it will adjust the print head voltage accordingly, which ensures print head in a good performance.
  • Pre heating on rear heating board, middle heating board with higher temperature improves ink absorption, precision printing and working efficiency.

Model
S4306SPT510_35PL
F4308SPT510_35PL
F4304SPT510_50PL
F4308SPT510_50PL
Printhead
 SPT510_35PL
SPT510_50PL
No of Printheads
6
8
4
8
Printhead combination
1×6
2×4
1×4
2×4
Print Width
3200mm 125.98inch
Media Width
3220mm 126.77inch
Print speed
Print mode
speed
speed
speed
speed
High speed
240X540 3pass 56m²/hr
240X540 3pass 112m²/hr
180X540 3pass 65m²/hr
180X540 3pass 130m²/hr
Middle speed
240X720 4pass 41m²/hr
240X720 4pass 82m²/hr
240X540 3pass 51m²/hr
240X540 3pass 102m²/hr
Standard speed
360X540 3pass 37m²/hr
360X540 3pass 74m²/hr
180X720 4pass 47m²/hr
180X720 4pass 94m²/hr
Ink Type
Ink Type
Solvent Ink
Color
KCMYLcLm
KCMY
KCMY
KCMY
Ink supply system
Automatic ink suppy based on auto-detected ink level, failure alarming, empty main tank prompt(optional)
Cleaning method
Singel color positive flush(with pressure protection), auto flushing & head moisturizing
RIP software
MainTop( Photoprint optional)
Interface
USB2.0
Printing assistant system
Auto feeding system
Infrared-detecting, feed & take-up system with memory function
Heating system
Three stage heating system(Preheating, Print- heating, post- heating)
Head heating
Low-voltage consistant-temperature head-heatingDC24V
Height of the tray
2~5mm Distance to platform, adjustable
Other functions
One key positive-pressure ink injecting,adjustable force of media being absopted to platform, anti-warp media-press,subtank heater(optional),lighting for head cleaning, drying fan, anti-splash board, emergency stop, full waste tank prompt
Printer info
Voltage
AC220V 50/60HZ AC110V 50/60HZ is optional
Power
Printing system 500W   Heating system(Post-,1000w, print-,1500w, pre-, 1000w)
Working environment
Normal temperature22~28      Himidity40%~70%RH
Machine size and weight
4840mm(L)X1000mm(W)X1340mm(H) 520kg±15kg
Shipping size and weight
5230mm(L)X1040mm(W)X1480mm(H) 740kg±15kg
