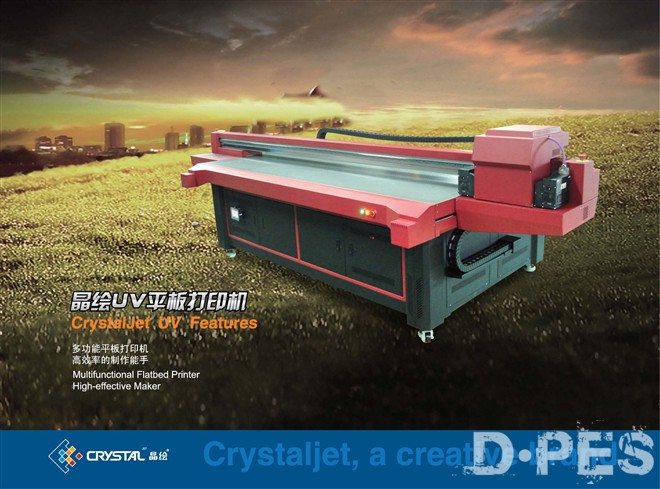

CrystalJet UV Printer-CJ-FB2506UV:
Multifunctional Flatbed Printer, High-effective Maker
1, High resolution ,high speed ,can compete with any import UV printer
2, Super width printing platform,max media weight is up to 1400KG, it could be fit
for most of the stardard media sizes and weights;
3, Max media height is 58mm, carriage height can be adjusted by touch screen or
by up and down button manually,Carriage height showed on the screen ,make
the printer carriage height adjustment more sample and easier;
4, Platform suction design, applicable to different media;
5, Import UV lamp system , make the printout more steady.
|

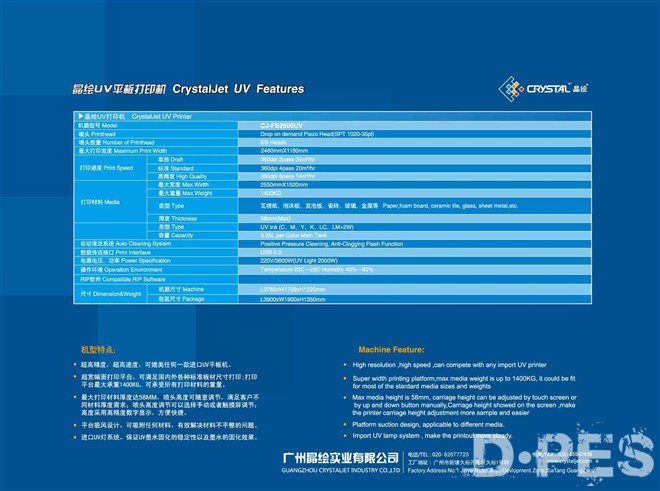

Model
|
CJ-FB2506UV
|
|
Printhead
|
Drop on demand Piezo Head(SPT 1020-35pl)
|
|
Number of Printhead
|
6/8 Heads
|
|
Maximum Print Width
|
2480mm180mm
|
|
Print Speed
|
Draft
|
360dpi 2pass 34/hr
|
|
Standard
|
360dpi 4pass 20/hr
|
|
High Quality
|
360dpi 6pass 142/hr
|
|
Media
|
Max.Width
|
2550mmX1520mm
|
|
Max.Weight
|
1400kg
|
|
Type
|
Paper,foam board, ceramic tile, glass, sheet metal,etc.
|
|
Thickness
|
58mm(Max)
|
|
Ink
|
Type
|
UV Ink (C\M\Y\K\LC\LM+2W)
|
|
Capacity
|
3.25L per Color Main Tank
|
|
Auto Cleaning System
|
Positive Pressure Cleaning, Anti-Clogging Flash Function&Capping System
|
|
Print Interface
|
USB 2.0
|
|
Power Specification
|
220V/3600W(UV Light 2000W)
|
|
Operation Environment
|
Temperature 20℃-28℃Humidity 40%-60%
|
|
Compatible RIP Software
|
|
|
Dimension&Weight
|
Machine
|
L3765xW1769xH1220mm
|
|
Package
|
L3900xW1900xH1350mm
|
